Description

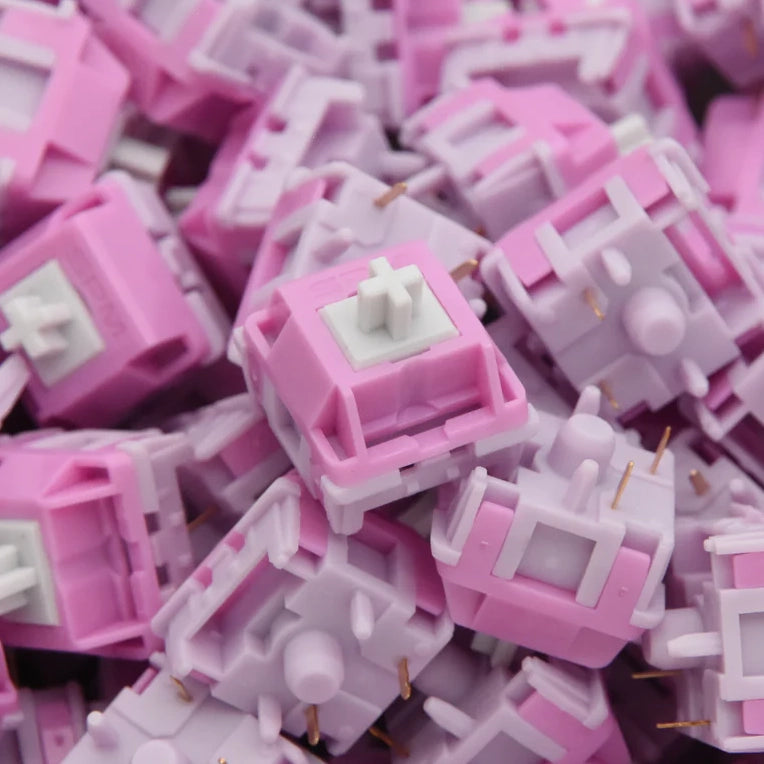

HMX Hibiscus switches boast a T3 stem, PA12 top housing, and PA66 bottom housing. In terms of specifications, they closely resemble the Canglan V2 and EVA switches, known for their deep and satisfying thockiness. While we cannot confirm the materials or formula behind the T3 stem, its sound has been compared to the Canglan V2 and EVA, resulting in a slightly deeper and quieter tone. And of course, the signature HMX clack and solid bottom out sound are still present.
1 Pack = 10 Pieces
Specification
- Switch Type: Linear
- Mounting Type: Plate Mount (5-Pin)
- Top Housing: PA12
- Bottom Housing: PA66
- Stem Material: T3
- Pre-travel: 2.0mm
- Total Travel: 3.5±0.3mm
- Operating Force: 42±5g
- Bottom-out Force: 48±5g
- Spring: 20mm
- Factory Lubed: Yes
